1、Product introduction
Intelligent operation： complete response time is less than 10ms, with full modular design and combination is flexible.
Intelligent and flexible: Smart control system, according to requirements of linear dynamic system, automatic adjustment of output ratio of active and passive module, and meet the requirements.
Flexible smoothing: completely linear, dynamic output, smooth and stable, constant power factor of 0.99, but fill, nor is it up.
Self strong： comprehensive account of capacitor, overall operation time, never let the capacitor in "sick" work and prolong service life.
 |
Maximum benefit and mostfunction
1.The most benefit: Intelligent work style, improve life of whole machine and reduce labor costs.
2.The most function: Reactive power and reactive power compensation, filtering system harmonics, solving problem of three-phase unbalance, eliminating voltage fluctuation caused by reactive power, and power quality of on-line detection system. |
 |
Fast response speed and fast maintenance
1.Fast response: 10ms within power factor compensation around to 0.99 ;
2.Fast maintenance: Whole module design, free combination, free disassembly, plug and play design, the maximum degree of reduction of the machine's downtime. |
 |

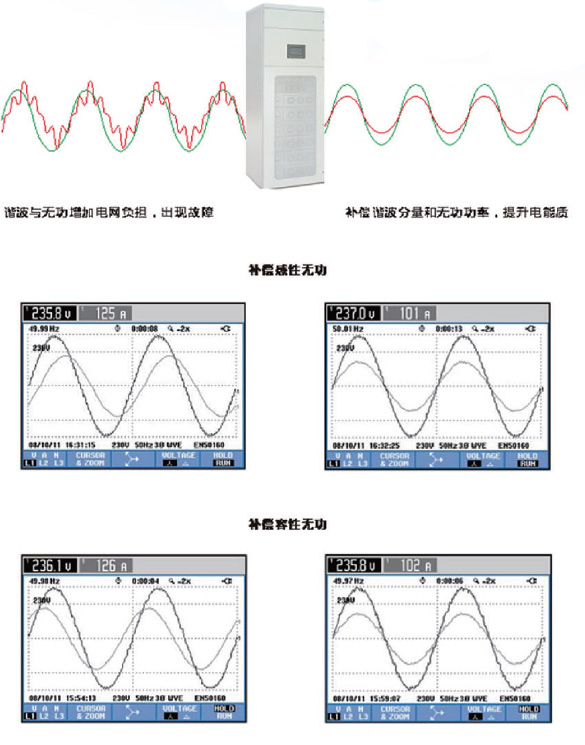

Linear compensation effect is good and good appearance, good display interface
1.Power factor can reach more than 0.99 in real time after compensation, there are no shock and no compensation;
2.Smart control system and hybrid compensation method, from source of packaging will not be less than compensation, and also not be compensated;
3.Module is easy to expand and reduce waste of investment;
4.Fully humanized design with 7 inch LCD touch screen, you can monitor working state of each road intelligent capacitor, so that users can always grasp status from device. |
 |
To save money worry
1.Eliminating capacitance compensation controller;
2.Strong phase compensation capacity, completely solve customer three-phase unbalance, greatest degree of reduced system of line loss and bring direct economic benefits to customers.
3.Smart intelligent control system and hybrid compensation method, reducing time and frequency of intelligent capacitor, growth of service life to device. |
2、Product features
Intelligent control system
Perfect 7 Inch Touch screen design and universal smart intelligent system coalesce traditional TSC controller function, equipment status and working conditions clear:
1.It can monitor and control working status of each road capacity including temperature, residual capacity, automatically adjust output of SVG module capacity and capacity of switch to guarantee power factor can reach more than 0.99, and maximum protection of service life of capacitor.
2.It can view entire distribution system of power quality, including harmonics, voltage deviation, three-phase unbalance, fault records and other functions.
3.Total response time less than 20ms and easy to face any complex distribution environment.
4.With RS485 and Ethernet communications, remote control can be achieved unattended.
Intelligent STSVG/STAPF active module
1.Perfect control and protection can self - removal fault and self - put or quit.
2.The main core components are from Germany and United States, it use the leading IGBT components in banner of the world and using DSP chip high speed testing and computing to ensure stability of STSVG/STAPF, reliability and fast memory accuracy.
3.Total response time less than 20ms , and easy to face any complex distribution environment.
4.As long as 20 years of design life, so you do not have to worry about.
5.100% phase of phase compensation, to perfect solve problem of three-phase imbalance.
The service life of capacitor is greatly increased
Intelligent control capacitor module and STSVG module /STAPF module, intelligent control system and average use time of capacitor, which greatly improve service life of capacitor.
3、Contrast with traditional dynamic compensation
| Functional
properties |
Traditional dynamic reactive power compensation |
STSVG/STAPF |
SVG |
| Control method |
Independent controller and control group to switch |
STSVG/STAPF module + Intelligent control system, stable and fast. |
Intelligent control system, the fastest and most stable |
| Output reactive power |
Packet output and there is blind spot |
Partial linear output, stable and smooth and no blind area |
All linear output and no blind area |
| Compensation
effect |
Around 0.95 |
Around 0.99, partial sensibility to full capacity |
Around 0.99, full emotional to full capacity and largest compensation |
| Full response time |
More than 100ms |
Less than 10ms |
Less than 5ms |
| Filtering
capability |
Specific harmonic |
STSVG specific harmonics, STAPF filtering in 2-50 times |
Specific filtering |
| Three phase unbalance |
In general, special design is needed. |
效果明显，STSVG模块可 以100%全功率输出，解决 三相不平衡问题 |
100% full power output, solve problem of three phase unbalance |
| Market price |
Price confusion |
Moderate prices |
Expensive price |

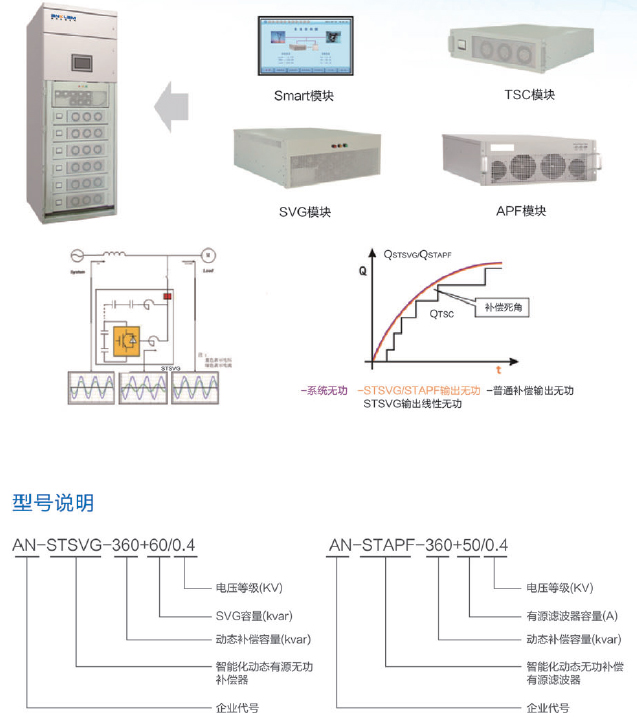

| Compensation capacity curve |

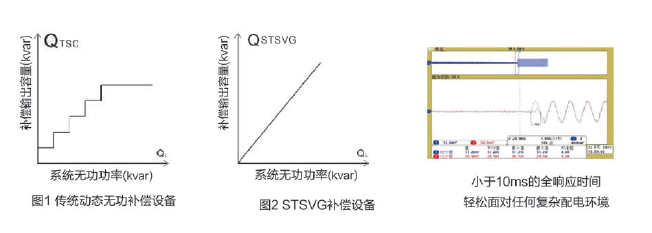

See Figure 1 |
See Figure 2 |
/ |
Technical parameters of product AN-STSVG
| Single cabinet compensation capacity kvar |
100-300 |
360-400 |
| AC input (AC IN) |
|
400x(1 ±20%)V |
| Rated frequency |
50x(1 ± 10%)Hz |
| |
30%- 100% |
| Mode of connection |
Three phase four wire |
| |
With filtering skills |
| Target power factor |
0.99 |
| |
10ms以内 |
| Overload protection |
Can be automatically set up regulation |
| |
Less than 60dB |
| Work pattern |
Automatic or manual |
| Communication interface |
RS485/232/ Ethernet |
| Upper computer program |
Optional |
| Protection level |
IP20(Higher optional) |
| Display screen |
LCD(7寸)Touch screen |
| Altitude requirements |
2000m (1%/100m drop capacity) |
| Cooling mode |
Air cooling |
| Single dimension WmmxDmmxHmm |
800x800x2200 |
1000x800x2200 |
| Other |
Non standard size can be customized, special requirements can call us |
Technical parameters of product AN-STAPE
| Single cabinet compensation capacity kvar |
100-250(+50A) |
300-360(+60A) |
| AC input(AC IN) |
Rated voltage |
400x(1 ±20%)V |
| Rated frequency |
50x(1±10%)Hz |
| Split phase compensation capability |
30%-100% |
| Mode of connection |
Three phase four wire |
| Frequency of harmonic compensation |
2-50 times |
| Technical index |
Target power factor |
0.99 |
| Response time |
Less than 10ms |
| Overload protection |
Can be automatically set up regulation |
| Noise |
Less than 60dB |
| Work pattern |
Automatic or manual |
| Communication interface |
RS485/232/ Ethernet |
| Upper computer program |
Optional |
| Protection level |
IP20(Higher optional) |
| Display screen |
LCD(7寸)Touch screen |
| Altitude requirements |
2000m (1 %/100m drop capacity) |
| Cooling mode |
Air cooling |
| Single dimension WmmxDmmxHmm |
800x800x2200 |
1000x800x2200 |
| Other |
Non standard size can be customized, special requirements can call us |
Application domain analysis
 |
Government schools, data centers, hospitals and other industries
Data center, such as hospital and other sensitive industries, the harmonic content is rich, ability to resist harmonic and traditional passive filter compensation effect is poor.
AN-STSVG is the best alternative to traditional dynamic reactive power compensation equipment, if focus to consider filtering effect, AN-STAPF is the best alternative to traditional dynamic filter compensation device, on the one hand, traditional dynamic reactive power compensation device has been put into cut frequently and service life is greatly「educed, on the other hand, traditional reactive power compensation response speed is slow and overall compensation effect is not ideal, it can bring fine of power sector; and AN-STSVG can be integrated with its intelligent active + passive way; not only compensation effect is obvious, but the service life of equipment is longer than that of ordinary one.
Business center, theater, automobile manufacturing, port and other industries
Business center, theater, automobile manufacturing, port and other industries
Three phase unbalanced problem is more outstanding, reactive power (non load) of the whole distribution system is called main reactive power at night (active load), traditional dynamic passive compensation can not meet requirements.
Use of STSVG/STAPF in solving system unbalance directly reduce the loss and effect of energy saving;
Using STSVG/STAPF not only can solve problem of reactive power, but also can solve problem of reactive power, and ensure compensation effect and power factor.
Other construction industry
STSVG can be fully qualified for all other traditional industries of reactive power compensation, that is a major milestone in development of reactive power compensation at this stage.
Using STAPF Anklam can solve problem of reactive power and harmonic wave in all kinds of cases.
STSVG can be fully qualified for all other traditional industries of filter compensation, that use active power filter cost pressure is too large, traditional passive filter compensation effect is not satisfied with best choice of customer. Use the STAPF from Anklam can perfectly solve above all kinds of harmonic and reactive conditions.
|
Model Selection-Construction industry
|
Transformer capacity（kVA)
|
Applicable to the commercial center, office building, data center, hospital, nine points, theater and other small harmonic content
|
Applicable to the commercial center, office building, data center, hospital, nine points, theater and other large harmonic content
|
|
AN-STSVG model and compensation capacity
|
AN-STAPF model and compensation capacity
|
|
200
|
AN-STSVG-50+50/0.4
|
AN-STAPF-100+50/0.4
|
|
250
|
AN-STSVG-50+50/0.4
|
AN-STAPF-100+50/0.4
|
|
315
|
AN-STSVG-50+50/0.4
|
AN-STAPF-100+50/0.4
|
|
400
|
AN-STSVG-100+50/0.4
|
AN-STAPF-150+50/0.4
|
|
500
|
AN-STSVG-100+50/0.4
|
AN-STAPF-150+50/0.4
|
|
630
|
AN-STSVG-150+50/0.4
|
AN-STAPF-200+50/0.4
|
|
800
|
AN-STSVG-200+50/0.4
|
AN-STAPF-250+50/0.4
|
|
1000
|
AN-STSVG-250+50/0.4
|
AN-STAPF-300+60/0.4
|
|
1250
|
AN-STSVG-350+50/0.4
|
AN-STAPF-400+60/0.4
|
|
1600
|
AN-STSVG-200+50/0.4 (2 sets of machines）
|
AN-STAPF-250+60/0.4(2 sets of machines)
|
|
2000
|
AN-STSVG-250+50/0.4 (2 sets of machines）
|
AN-STAPF-300+60/0.4 (2 sets of machines)
|
|
2500
|
AN-STSVG-350+50/0.4 (2 sets of machines〉
|
AN-STAPF-400+60/0.4 (2 sets of machines)
|
|
Single cabinet size
|
Wmm x Dmm x Hmm 1000(800) x 800 x 2200
|
|
Transformer capacity (KVA)
|
Industrial occasions with small harmonic content
|
Industrial occasions of large harmonic content
|
|
AN-STSVG model and compensation capacity
|
AN-STAPF model and compensation capacity
|
|
500
|
AN-STSVG-150+50/0.4
|
AN—STAPF -200+50/0.4
|
|
630
|
AN-STSVG-200+50/0.4
|
AN-STAPF-200+50/0.4
|
|
800
|
AN-STSVG—250+50/0.4
|
AN-STAPF-300+50/0.4
|
|
1000
|
AN-STSVG-350+50/0.4
|
AN-STAPF-400+60/0.4
|
|
1250
|
AN-STSVG-350+50/0.4
|
AN-STAPF-400+60/0.4
|
|
1600
|
AN-STSVG-200+50/0.4(2 sets of machines）
|
AN-STAPF-250+60/0.4(2 sets of machines）
|
|
2000
|
AN_STSVG-200+50/0.4(2 sets of machines）
|
AN-STAPF-300+60/0.4(2 sets of machines）
|
|
2500
|
AN-STSVG-350+50/0.4(2 sets of machines）
|
AN-STAPF-400+60/0.4(2 sets of machines）
|
|
3000
|
AN-STSVG-250+50/0.4(3 sets of machines）
|
AN-STAPF-300+60/0.4(3 sets of machines）
|
|
Single cabinet size
|
Wmm x Dmm x Hmm 1000(800) x 800 x 2200
|
Explain：
For larger impact load, the highest harmonic content in industry, such as automobile, rolling car, charging piles and ports etc., it is recommended to use STSVG plus active power filter way, you can completely solve problem.
| Switch cabinet number |
1 |
2 |
| Cabinet type |
|
AN-STSVG-XXX+XX/0.4 |
AN-STAPF-XXX+XX/0.4 |
| Loop number |
|
|
|
| Name |
The main transformer two times into line cabinet |
Intelligent dynamic reactive power compensation device |
Intelligent dynamic reactive power compensation active power filter |
| Installation capacity (kw) |
|
XXX+XX(Kvar) |
XXX(Kvar)+XX(A) |
| Calculated current (A) |
|
- Complete response time： less than 10ms
- Power factor reached 0.99 or more
- IGBT uses international famous brand product 4.7 inch or more size of touch screen
- With more than 40% three phase unbalance compensation
|
- The complete response time is less than 10ms, and filtering capability is2-51 times
- Power factor reached 0.99 or more
- IGBT uses international famous brand product
- 4.7 inch or more size of touch screen
- With more than 40% three phase unbalance compensation
|
| Switch model |
|
| Rated value / switch setting current(A) |
|
| Instantaneous current trip(A) |
|
| Current transformer model |
AHL-0.66/5A |
|
| Electric instrument |
|
|
| Size of switch cabinet (width*depth*height) |
1000x1000x2200 |
1000(800)x800x2200 |
|
